Shinho S-12PM Fusion Splicer: The Competitive Edge
With so many PM fusion splicers on the market—from high-end brand like Fujikura —it’s easy to assume that performance comes with a prohibitive price tag. But the Shinho S-12PM breaks this mold, offering professional-grade performance at a competitive price point that makes it accessible to small businesses, researchers, and large enterprises alike. Here’s why it stands out:
1. Superior Precision and Performance

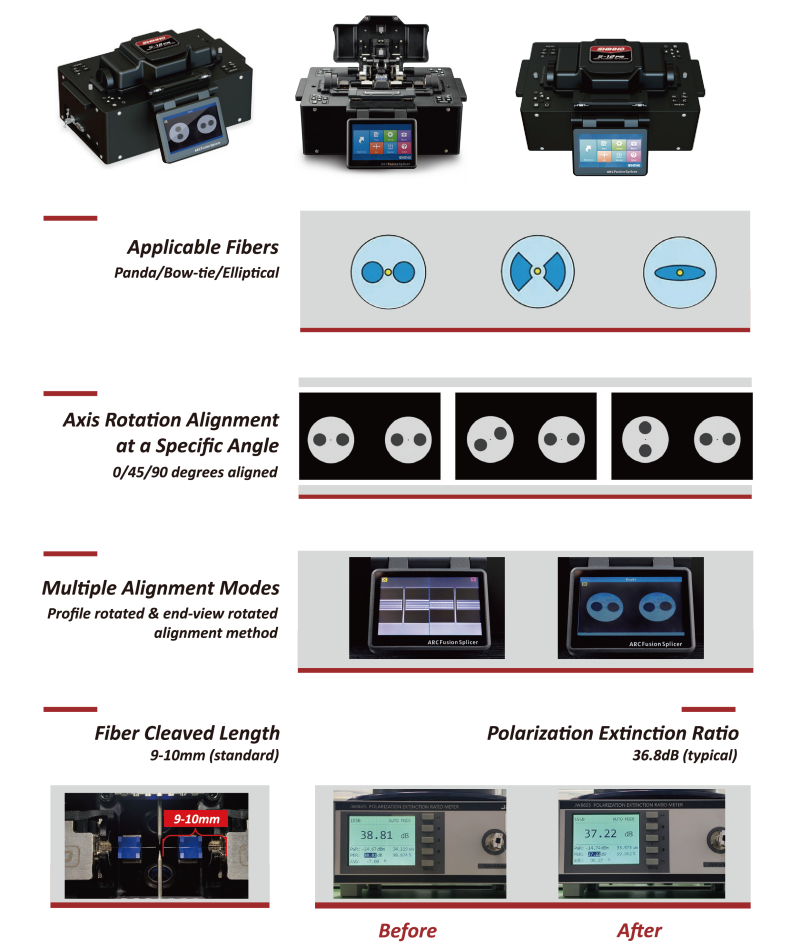

The Shinho S-12PM uses advanced core-to-core alignment technology, combined with dual fiber end face imaging and fiber outline/end face dual mode alignment, ensuring accurate alignment even for different PM fiber types. Its typical splicing loss for PM fibers is as low as 0.06 dB, while single-mode fibers achieve 0.03 dB—on par with high-end competitors. The splicer also features real-time arc calibration based on fiber type and images, delivering consistent, stable performance every time.
2. Versatility for All PM Fiber Types
Unlike some PM splicers that only work with specific fiber designs, the Shinho S-12PM is compatible with panda, bow-tie, and elliptical PM fibers—covering the most common PM fiber types used in industries today. It also supports splicing of single-mode, multi-mode, dispersion-shifted, and non-zero dispersion-shifted fibers, making it a versatile tool for multiple applications. Its cladding diameter compatibility (60~400 µm) and coating diameter range (135~900 µm) further enhance its flexibility.
3. User-Friendly Design for Efficiency
The Shinho S-12PM features a 5-inch HD color LCD monitor, dual high-sensitivity cameras, and an intuitive GUI menu interface, making it easy to operate even for less experienced technicians. It offers both manual and automatic operation modes, with a typical splicing time of under 60 seconds for PM fibers and 20 seconds for standard fibers. The splicer also stores up to 10,000 fusion records and 100 images, allowing for easy data tracking and reporting. Additionally, its electrode life exceeds 2000 splices and is easy to replace, reducing downtime and maintenance costs.
4. Unbeatable Competitive Pricing
One of the biggest advantages of the Shinho S-12PM is its price point. While high-end PM fusion splicers can cost thousands of dollars, the Shinho S-12PM offers comparable performance at a fraction of the cost—making it an ideal choice for businesses looking to balance quality and budget. Even for small labs or startups, the S-12PM provides professional-grade results without breaking the bank. Plus, customers who consult and place an order can receive a pair of Shinho original electrodes, adding extra value.
5. Durability for All Scenarios
The Shinho S-12PM is built to withstand the demands of both lab and field use. Its compact size fits all current usage scenarios, and it operates reliably in temperatures ranging from 0~40℃ (non-frosted). The splicer’s tension test capacity (1.96 N) ensures that spliced joints are strong and durable, capable of withstanding environmental stress and physical wear.
Development Prospects of PM Fusion Splicers
The future of PM fusion splicers is bright, driven by the rapid growth of industries that rely on high-precision optical systems. According to industry reports, the global fusion splicing systems market is projected to grow at a CAGR of 5.1% from 2026 to 2034, reaching USD 1.13 billion by 2034. PM fusion splicers, as a specialized segment, are expected to grow even faster, fueled by the following trends:
1. Rising Demand from 5G and Data Centers
The global rollout of 5G networks and the expansion of data centers are driving unprecedented demand for PM fibers and splicers. 5G base stations require dense fiber backbones, and data centers need high-reliability connections to support cloud services and high-speed data transmission. The Shinho S-12PM’s versatility and efficiency make it well-positioned to capitalize on this growth, as it can handle the diverse fiber types used in these applications.
2. Innovation in AI and Automation
The next generation of PM fusion splicers will integrate AI and machine learning to optimize splicing parameters, reduce human error, and enable predictive maintenance. While the Shinho S-12PM already offers automatic alignment and arc calibration, future iterations are likely to incorporate AI-driven features to further improve efficiency and precision. This trend will make PM splicers more accessible to non-specialists and reduce operational costs.
3. Expansion into Emerging Industries
PM fusion splicers are increasingly being adopted in emerging sectors like quantum computing, autonomous vehicles, and renewable energy (solar and wind power monitoring). These industries require ultra-precise optical connections, and the Shinho S-12PM’s low loss and high reliability make it a viable choice for these new applications. As these industries grow, the demand for cost-effective PM splicers will continue to rise.
4. Growing Focus on Miniaturization and Portability
Field operations and on-site maintenance are becoming more common, driving demand for compact, portable PM fusion splicers. The Shinho S-12PM’s user-friendly, compact design already meets this need, and future models are likely to become even smaller and more portable, with longer battery life and enhanced durability for harsh environments.
Final Thoughts: Why Shinho S-12PM Is the Smart Choice
PM fusion splicers are no longer just specialized tools for large enterprises—they’re essential for any business or lab working with high-precision optical systems. And when it comes to balancing performance, versatility, and cost, the Shinho S-12PM stands head and shoulders above the competition. Its superior alignment technology, compatibility with all major PM fiber types, user-friendly design, and competitive pricing make it the ideal choice for professionals across industries—from fiber laser manufacturers to 5G installers and research labs.
As the demand for PM fibers continues to grow, investing in a reliable, cost-effective PM fusion splicer like the Shinho S-12PM isn’t just a smart decision—it’s a strategic one. It ensures that your optical systems perform at their best, while keeping your budget in check.
Have you used the Shinho S-12PM for your PM fiber splicing needs? Or are you considering it for your next project? Share your thoughts and experiences in the comments below—I’d love to hear from you!
